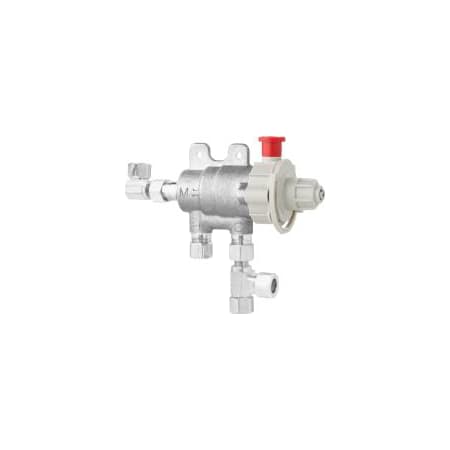

Chicago Faucets ECAST Thermostatic Mixing Valve

Chicago Faucets 131-CFMABRCF Features:

• Standard 3/8" compression inlets and outlets
• Integral inlet check valves to protect against cross-flow
• Adjustment cap with locking feature
• ECAST design provides durable brass construction
• Thermostatic wax element design
• Thermostat controls both hot and cold water
• Installs between the stop valves and the faucet
• Single use or multiple faucet installations
• Includes wall bracket

Chicago Faucets 131-CFMABRCF Specifications:

• Minimum Flow Rate: .35 gpm
• Maximum Flow Rate: 4.66 gpm
• Minimum Supply Pressure: 30psi
• Hot Inlet Temperature: 100°F-180°F
• Temperature Out: 80°F to 120°F

Chicago Faucets 131-CFMABRCF Codes & Standards:

• Certified to NSF/ANSI 61, Section 9 by CSA
• ASSE 1070
• California Health and Safety Code 116875 (AB1953-2006)
• Vermont Bill S.152
• NSF/ANSI 372 Low Lead Content
