Broan 120-650 CFM 21" Wide Custom Insert Range Hood Power Pack with Four Speeds and LED Lighting
Model: PM600SSV|Item: bci4379074
Details
From the leader in residential indoor air quality this Broan Elite® custom range hood insert features SmartSense®. SmartSense® enables automated ventilation using infrared sensing which will automatically sense when it needs to turn on/off or adjust the speed based on the heat of the range. While the voice control capabilities also make it easier than ever to improve air quality in the kitchen. Through the WiFi connection with Alexa or Google Assistant you can control the range hood with voice commands - "Turn my range hood up to fan speed 3".
The kitchen is the most polluted room in the house regardless of type of cooking appliance; everything from smoke, odors and chemicals are in the air. The range hood is often forgotten as the primary and most effective way to get the pollutants out of the home and improve the air we breathe. With SmartSense® you don’t have to think about turning the ventilation on, you can just trust that your range hood will do it for you. This range hood is HVI certified providing powerful ventilation with 650 Max Blower CFM to remove the pollutants and improve the air you breathe. While ventilating the kitchen air this range hood is still extremely quiet at a sound level of 0.5 sones on normal speed, which is as loud as whispers.

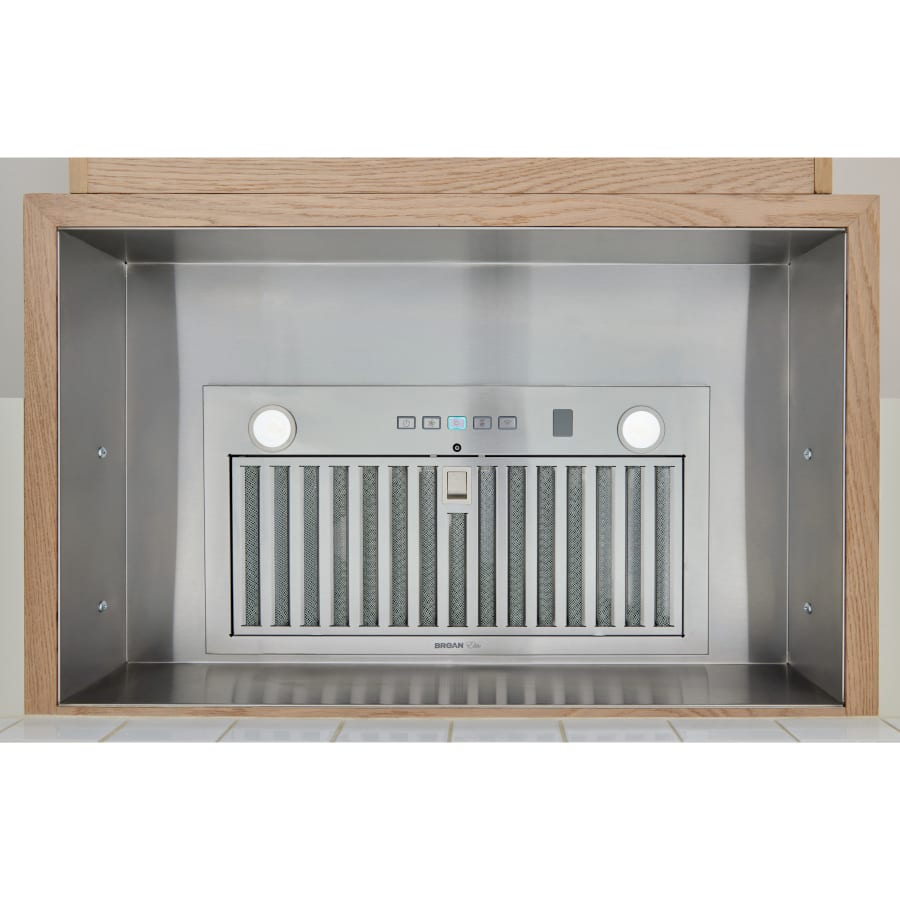

This built-in range hood insert also offers a custom appearance while protecting cabinetry with stainless steel liners. Bright 2-level, heat resistant LED lighting making even the worst cook’s recipe look great. The 4-speed back-lit soft touch control has an easy to clean surface. The EZ1 Installation System allows for 1-person installation, making installation fast for both the professional and DiY installers. At Broan-NuTone we believe that better quality of air means better quality of life.
Features:
- Powerful 650 MAX Blower CFM operates at 0.5 sones at normal speed.
- Bright 3-level, heat resistant LED modules enhance your cooking experience.
- 4-Speed electronic controls makes operation easy.
- Dishwasher-safe baffled filters feature quick-release latch for easy removal.
- Optional non-duct recirculation kit and filters available for indoor exhaust recirculation to suit your needs.
- Works with optional stainless LB30SS and LB36SS liners.
Specifications:
- CFM: 120, 180, 560, 650
- Sones: 1.0, 3.0, 9.5

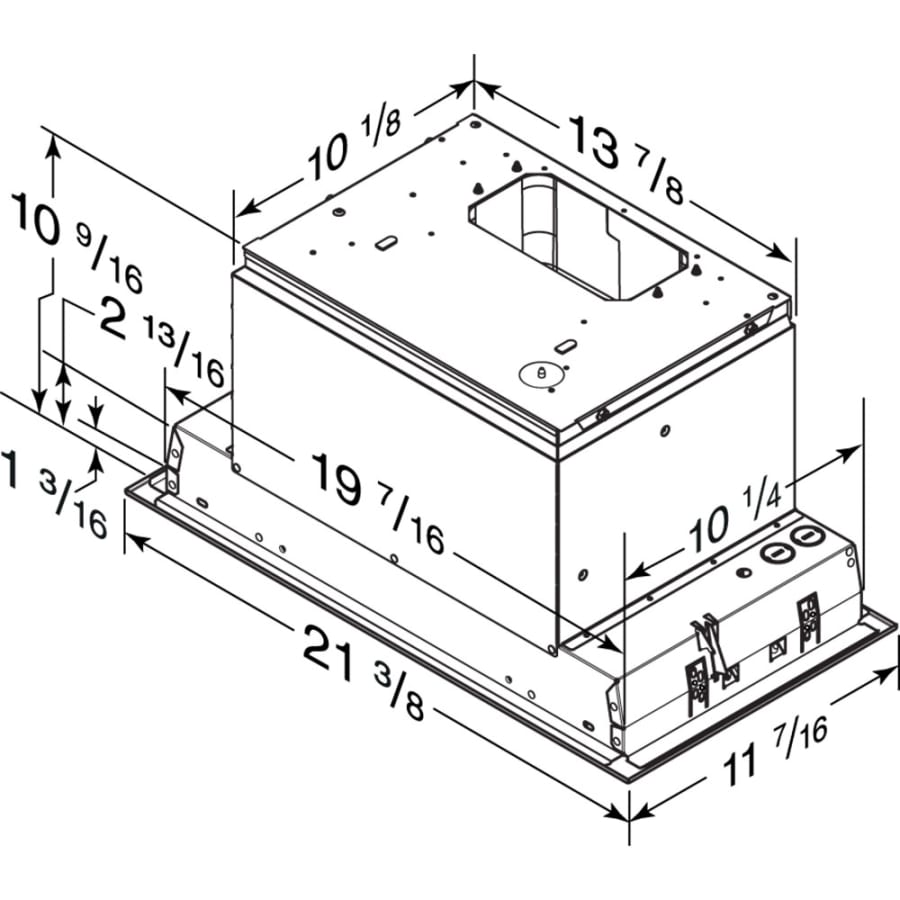

- Width: 21-3/8"
- Depth: 11-7/16"
- Height: 10-9/16"
- Height Above Cooktop: 24"-30""
- Blower Speeds: 4
- Ducting: 3.25"x10" Rectangular duct, 6" Round and 8" Round included
Dimensions and Measurements
CFM | 120, 180, 290, 560 |
CFM (High) | 650 |
Depth | 11.438 in. |
Duct Size | 3-1/4" x 10", 6" Round, 8" Round |
Height Above Cooktop | 24" to 30" |
Nominal Width | 21.375 in. |
Dimensions and Measurements
CFM | 120, 180, 290, 560 |
CFM (High) | 650 |
Depth | 11.438 in. |
Duct Size | 3-1/4" x 10", 6" Round, 8" Round |
Height Above Cooktop | 24" to 30" |
Nominal Width | 21.375 in. |
Included Components
Available Without Blower | No |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | Yes |
Ductless | No |
Light Included | Yes |
Included Components
Available Without Blower | No |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | Yes |
Ductless | No |
Light Included | Yes |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Touch |
Duct Discharge | Horizontal, Vertical |
Filter Type | Baffle Filters |
Installation Type | Full Installation |
Material | Stainless Steel |
Number of Bulbs | 2 |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Touch |
Duct Discharge | Horizontal, Vertical |
Filter Type | Baffle Filters |
Installation Type | Full Installation |
Material | Stainless Steel |
Number of Bulbs | 2 |
Electrical and Operational Information
Amperage | 4 |
Frequency | 60 Hertz |
Sones | 0.5, 1.1, 3, 9.5 |
Speeds | 4 |
Voltage | 120 |
Electrical and Operational Information
Amperage | 4 |
Frequency | 60 Hertz |
Sones | 0.5, 1.1, 3, 9.5 |
Speeds | 4 |
Voltage | 120 |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | No |
Certifications | UL, HVI |
Country Of Origin | USA |
Energy Star | No |
Made in America | Yes |
Manufacturer Warranty | 1 Year |
Outdoor Approved | No |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | No |
Certifications | UL, HVI |
Country Of Origin | USA |
Energy Star | No |
Made in America | Yes |
Manufacturer Warranty | 1 Year |
Outdoor Approved | No |
