The Big Ass Fans S3150-X2-AW-04-02-C-01-F531 has been discontinued

** See similar or replacement items below **

Big Ass Fans
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Item # bci4033996

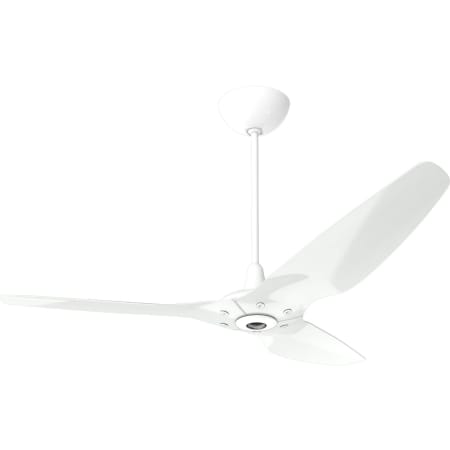

Big Ass Fans Haiku 60" Universal Mount 3 Blade Indoor Smart Ceiling Fan with Remote Control and White Motor / Body

Model: S3150-X2-AW-04-02-C-01-F531
|
Item: bci4033996

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

Features

  • SenseME technology allows indoor Haiku fans to respond automatically to temperature and humidity changes for maximum comfort, convenience and energy savings; works with ecobee smart thermostat
  • Aerodynamic airfoils provide silent airflow to any commercial or residential indoor space
  • Silence comes standard as each Haiku fan is hand balanced and sound tested in Lexington KY
  • Finish and Blade Variations (aircraft-grade aluminum airfoils):
    • White mount finish includes White Aluminum blades
    • White mount finish includes Brushed Aluminum blades
    • White mount finish includes Caramel Bamboo blades
    • White mount finish includes Driftwood Aluminum blades

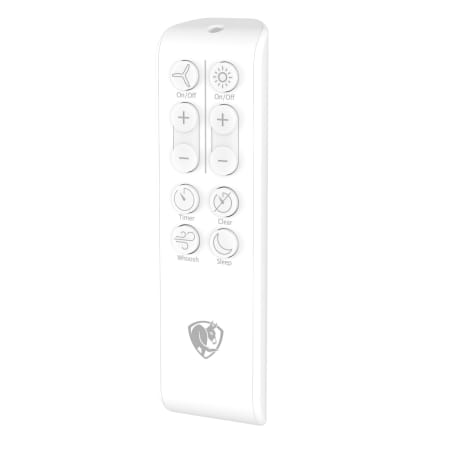

  • Fan is controllable by a Remote Control (included)
  • Can be installed on sloped ceilings
  • Includes (1) 20" and (1) 32" downrod (extension tubes)
  • Manufactured in the United States
  • Uses an energy efficient reversible 2 watt DC motor
  • CSA rated for dry locations
  • Energy Star approved
  • Meets California Title 24 energy standards
  • Warranty
    • Residential: 5 years
    • Non-residential: 3 years

Dimensions

  • Blade Span: 60"
  • Height: 29"
  • Width: 60"
  • Product Weight:
    • with aluminum foils: 17.5 lbs.
    • with bamboo foils: 15 lbs.

Mounting

  • Universal Mount
    • Sloped or Flat ceilings from 9-14+ ft.
    • (1) 20" and (1) 32" extension tube (48" and 60")
  • Other available mounts (not included):
    • Low Profile Mount
    • Flat ceilings as low as 8 - 9.5 ft.
    • (1) 6" extension tube

Blade Specifications

  • Number of Blades: 3
  • Blades Included: Yes
  • Reversible Blades: No

Motor Specifications

  • Speeds: 7
  • CFM high: 7673 (cubic feet per minute)
  • Reversible Motor: Yes
  • Motor Wattage: 2 watts

Optional Accessories

  • Indoor LED light kit (005344)

Dimensions and Measurements

Blade Span
60 in.
CFM (High)
7673, 8629
Downrod Size(s)
20, 32 in.
Height
29 in.
Product Weight
15, 17.5 lbs.
Width
60 in.

Dimensions and Measurements

Blade Span
60 in.
CFM (High)
7673, 8629
Downrod Size(s)
20, 32 in.
Height
29 in.
Product Weight
15, 17.5 lbs.
Width
60 in.

Included Components

Blades Included
Yes
Controller Included
Yes
Downrod(s) Included
Yes
Includes Receiver
Yes
Light Kit Included
No
Shade
Yes

Included Components

Blades Included
Yes
Controller Included
Yes
Downrod(s) Included
Yes
Includes Receiver
Yes
Light Kit Included
No
Shade
Yes

Characteristics and Features

Blade Finish
Light Wood, Silver, White
Bulb Visible
No
Control Type
Remote
Fan Type
Hanging
Light Direction
Down Lighting
Light Kit Compatible
Yes
Low Ceiling Adaptable
No
Material
Aluminum, Wood
Motor
DC Motor
Number of Blades
3
Reversible Blades
No
Reversible Motor
Yes
Shade Color
Clear
Shade Shape
Bowl
Sloped Ceiling Compatible
Yes
Theme
Modern

Characteristics and Features

Blade Finish
Light Wood, Silver, White
Bulb Visible
No
Control Type
Remote
Fan Type
Hanging
Light Direction
Down Lighting
Light Kit Compatible
Yes
Low Ceiling Adaptable
No
Material
Aluminum, Wood
Motor
DC Motor
Number of Blades
3
Reversible Blades
No
Reversible Motor
Yes
Shade Color
Clear
Shade Shape
Bowl
Sloped Ceiling Compatible
Yes
Theme
Modern

Electrical and Operational Information

Power Source
Hardwired
Speeds
7
Voltage
100, 277
Voltage Type
Commercial Voltage (125V+), Line Voltage (110-120V)
Wattage
1.8, 1.9, 21.4, 26.8

Electrical and Operational Information

Power Source
Hardwired
Speeds
7
Voltage
100, 277
Voltage Type
Commercial Voltage (125V+), Line Voltage (110-120V)
Wattage
1.8, 1.9, 21.4, 26.8

Warranty and Product Information

Certifications
CSA
Collection
Haiku
Country Of Origin
USA
Energy Star
Yes
Location Rating
Dry Location
Made in America
Yes
Manufacturer Warranty
5 Year
Title 20 Compliant
Yes
Title 24
Yes

Warranty and Product Information

Certifications
CSA
Collection
Haiku
Country Of Origin
USA
Energy Star
Yes
Location Rating
Dry Location
Made in America
Yes
Manufacturer Warranty
5 Year
Title 20 Compliant
Yes
Title 24
Yes
