Baldwin Arch Passage Leverset with Rustic Arch Rose - Left Handed
Model: PSARCLRAR492|Item: bci1838593
Details

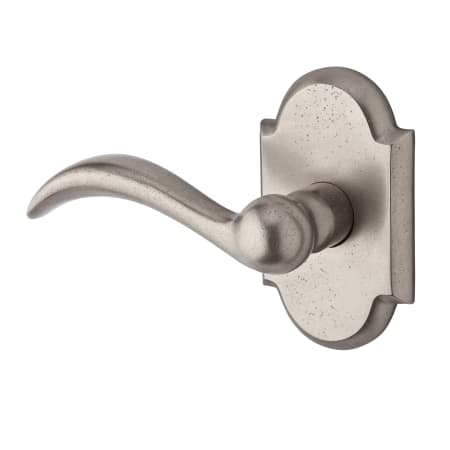

Baldwin Arch Passage Leverset with Rustic Arch Rose
Baldwin's Arch lever features a substantial size and a hand distressed look, giving the classic shape of the Arch lever a rustic appearance. The either dark or white bronze finishes are both sophisticated an luminous, while also providing a long lasting luster with their durable lacquer finish. Featuring the Rustic Arch Rose which adds to the weathered look and feel of the already exquisite door lever.
Passage Function: Baldwin's passage leversets have no locking function and are free turning on both sides. These levers are perfect for a hallway or closet where no locking is necessary. Sometimes passage levers are used in conjunction with a deadbolt for an entrance or back door.
Features:
- Solid forged brass construction built to last a lifetime.
- To personalize your look, this Rustic inspired design is available in 2 finishes.
- Versatility and Easy Installation:
- Adjustable Latch for both 2-3/8" and 2-3/4" backset
- Round Corner, Square Corner and Drive-In Latch Plates
- Includes both Round Corner and Square Corner Strike Plates
- Guide Post for Easy Installation
- Accommodates door thickness 1-3/8" to 2". Up to 2-1/2" thick door with service part kit (Part Number: 8BR0707).
- 2-1/8" cross bore and 1" edge bore for latch.
- Tested to exceed ANSI/BHMA Grade 2 security.
- Shown with Rustic Arch Rose, can be customized with other Reserve roses.
- Features easy-to-install spring assisted chassis for optimal operational strength.
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.
Baldwin Reserve combines Baldwin's legacy of quality and craftsmanship with advanced technology to deliver a personalized blend of styles that are more accessible to builders, designers and homeowners. Baldwin Reserve offers a range of Baldwin's most traditional, contemporary and rustic styles as well as new authentic Baldwin designs inspired by today's design trends. Mix and match Baldwin Reserve. Personalize your home with a custom configuration that combines Baldwin's legacy of craftsmanship with a custom look for every architectural style.
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/8" |
Edge Bore | 1" |
Lever Length | 4.5 in. |
Projection | 2.5625 in. |
Rose Height | 4.5 in. |
Rose Width | 2.6875 in. |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/8" |
Edge Bore | 1" |
Lever Length | 4.5 in. |
Projection | 2.5625 in. |
Rose Height | 4.5 in. |
Rose Width | 2.6875 in. |
Characteristics and Features
Function | Passage |
Handing | Left |
Latch Faceplate | Drive-In, Round Corner, Square Corner |
Lever Shape | Wave |
Material | Brass |
Rosette Shape | Arch |
Theme | Rustic |
Characteristics and Features
Function | Passage |
Handing | Left |
Latch Faceplate | Drive-In, Round Corner, Square Corner |
Lever Shape | Wave |
Material | Brass |
Rosette Shape | Arch |
Theme | Rustic |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Collection | Reserve |
Series | Arch |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Collection | Reserve |
Series | Arch |
