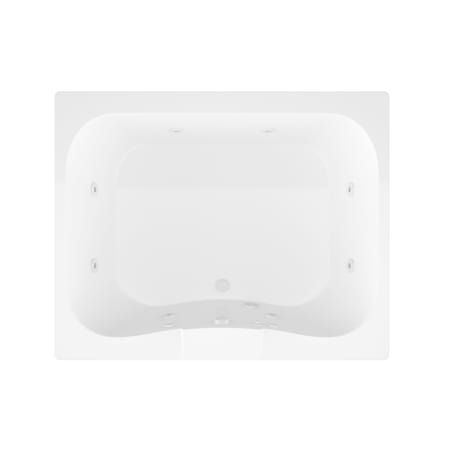

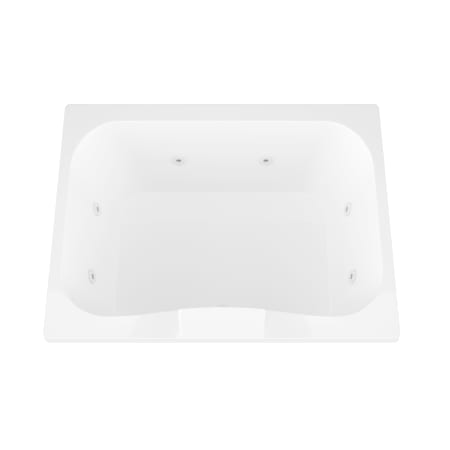

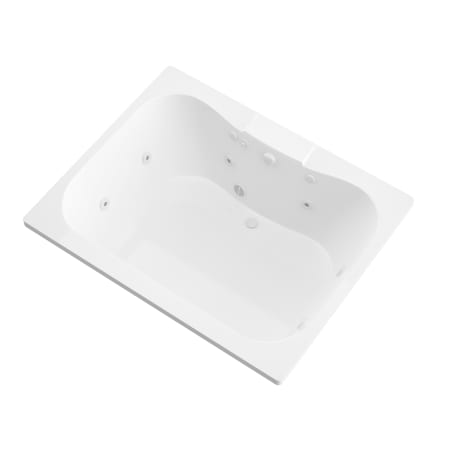

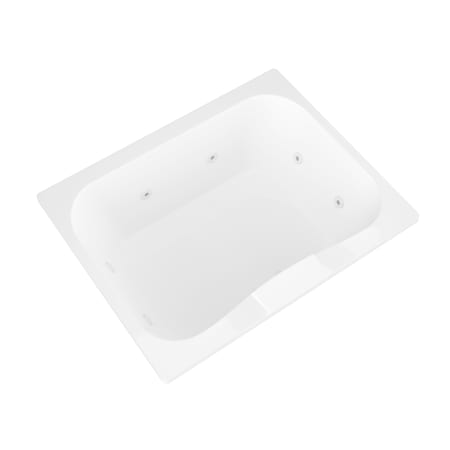

Avano Maui 59" Acrylic Whirlpool Bathtub for Drop-In Installations with Left Drain

Product Features:

• Covered under Avano's 10 year limited warranty against manufacturer defects, 1 years parts replacement and 90 days labor
• Tub constructed of acrylic

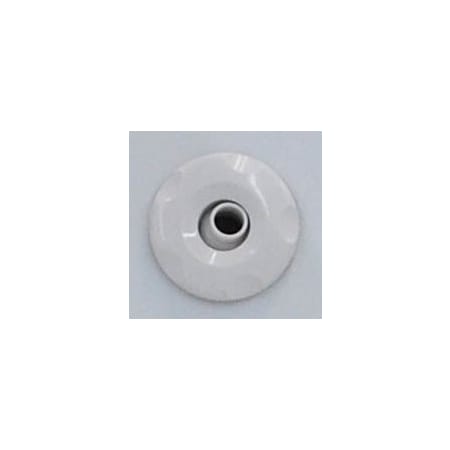

• Air bath - air injection system gives the user a unique, relaxing bathing experience

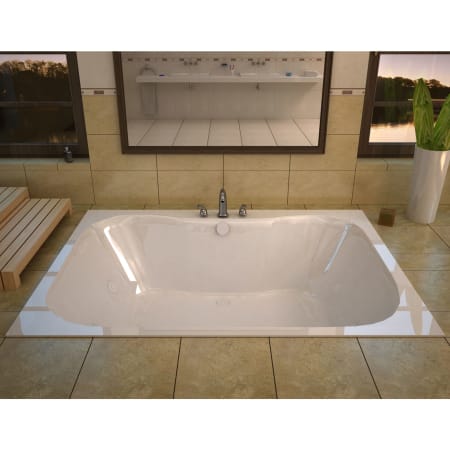

• Drop-in installation
• Equipped with an overflow assembly permitting the user to enjoy a deep soak without worrying about spillage
• ADA compliant – complies with the standards set forth by the American’s with Disabilities Act for bath tubs No

Product Technologies / Benefits:

• • Material - Acrylic: A strong, flex resistant material with a smooth finish that resists chipping and cracking, as well as being easy to clean.

Product Specifications:

• Overall Height: 23" (measured from the top of tub rim to the bottom of basin)
• Overall Width: 47-1/4" (measured from back most to front most point on outer rim)
• Overall Length: 59" (measured from left most to right most point on outer rim)
• Basin Width (Bottom): 41" (back to front measurement of the bottom of basin walls)
• Basin Length (Bottom): 32-1/2" (right to left measurement of the bottom of basin walls)
• Basin Width (Top): 39-1/4" (back to front measurement of the top of basin walls)
• Basin Length (Top): 55-1/2" (right to left measurement of the top of basin walls)
• Water Depth: 15" (depth of water at tub’s maximum capacity)
• Maximum Water Capacity: 45 gallons
• Drain Location: Left
• Blower Motor Voltage: 110 V
• Blower Motor Amperage: 15
