Shipping to:Hilliard, OH
The American Standard 9038824.002 has been discontinued
** See similar or replacement items below **
Item # bci3948968

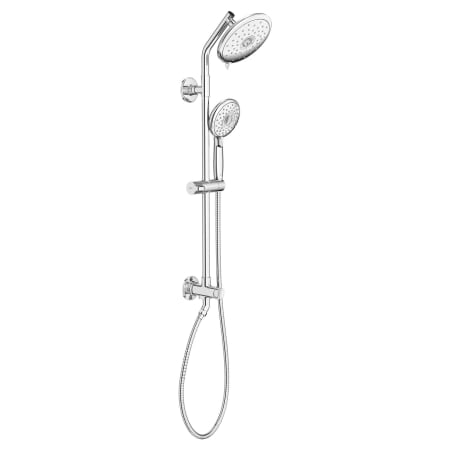

American Standard Spectra Versa Shower System with Shower Head, Hand Shower, Slide Bar, Hose and Aqua Toggle Technology
Model: 9038824.002|Item: bci3948968
from theSpectra Versa Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details

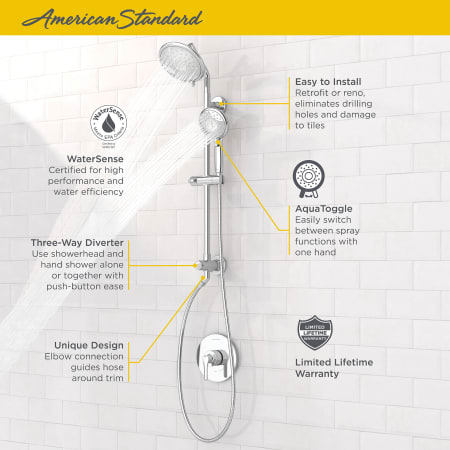

American Standard 9038.824 Features:
- System includes 7” four-spray shower head, hand shower, push-button diverter, slide bar with Easy Glide tab, 69” metal shower hose, adhesive tape and screws
- Enjoy using shower head and hand shower, alone or together
- Easy installation for retrofit, renovation or new construction eliminates drilling or damage to tile
- Connects to existing shower outlet without tools or damage to tiles; securely adheres to existing tile with included adhesive tape or screws
- Spray functions include Drench, Sensitive, Jet and Massage
- AquaToggle on shower head and hand shower to switch sprays with one hand
- Push-button diverter easily switches from shower head to hand shower or combines both
- Easy Glide slide bar adjusts for the perfect hand shower height
- Rubber nozzles wipe clean with your fingertip
American Standard 9038.824 Technologies and Benefits:
- Aqua Toggle: A smartly positioned lever that allows users to easily switch between preferred functions while operating the spray head with a single hand.
Shower Head Specifications:
- Multi function shower head constructed of plastic with 4 separate spray settings featuring Drench, PowerWash, Sensitive and Massage spray patterns
- Shower Head Flow Rate: 1.8 gallons-per-minute
- Shower Head Height: 3-3/16" (top to bottom)
- Shower Head Width: 7-3/16" (left to right)
- Shower Arm Length: 6-1/4"
Hand Shower Specifications:
- Hose Length: 69"
- Hand Shower Flow Rate: 1.8 gallons-per-minute
- Hand Shower Type: Multi-Function
- Shower system includes wall supply for hand shower

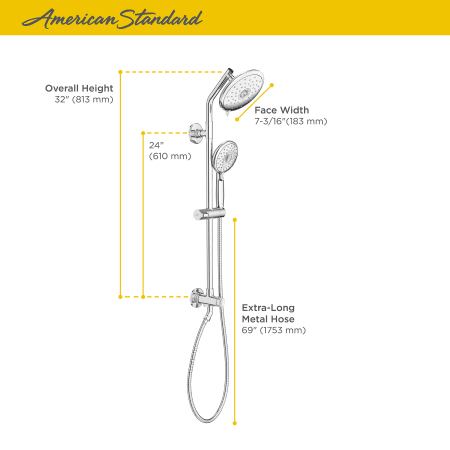

Dimensions and Measurements
Flow Rate (GPM) | 1.8 |
Handshower Flow Rate | 1.8 |
Hose Length | 69 in. |
Shower Arm Reach | 6.25 in. |
Showerhead Flow Rate (GPM) | 1.8 |
Showerhead Height | 3.1875 in. |
Showerhead Width | 7.1875 in. |
Slide Bar Height | 32.1875 in. |
Water Connection | 1/2" |
Dimensions and Measurements
Flow Rate (GPM) | 1.8 |
Handshower Flow Rate | 1.8 |
Hose Length | 69 in. |
Shower Arm Reach | 6.25 in. |
Showerhead Flow Rate (GPM) | 1.8 |
Showerhead Height | 3.1875 in. |
Showerhead Width | 7.1875 in. |
Slide Bar Height | 32.1875 in. |
Water Connection | 1/2" |
Included Components
Bodysprays Included | No |
Diverter Included | Yes |
Handles Included | Yes |
Handshower Included | Yes |
Hose Included | Yes |
Integrated Diverter | Yes |
Shower Arm Included | Yes |
Shower Head Included | Yes |
Slide Bar Included | Yes |
Tub Spout Included | No |
Valve Included | No |
Valve Trim Included | No |
Volume Control | No |
Wall Supply Included | Yes |
Included Components
Bodysprays Included | No |
Diverter Included | Yes |
Handles Included | Yes |
Handshower Included | Yes |
Hose Included | Yes |
Integrated Diverter | Yes |
Shower Arm Included | Yes |
Shower Head Included | Yes |
Slide Bar Included | Yes |
Tub Spout Included | No |
Valve Included | No |
Valve Trim Included | No |
Volume Control | No |
Wall Supply Included | Yes |
Characteristics and Features
Diverter Location | Valve Trim |
Faucet Type | Shower System |
Handle Style | Lever |
Installation Type | Wall Mounted |
Material | Plastic |
Number Of Handles | 1 |
Pause Control | No |
Showerhead | Multi Function |
Showerhead Material | Plastic |
Showerhead Shape | Round |
Spray Pattern | Jet, Drench, Massage, Mist |
Spray Settings | 4 |
Theme | Modern |
Water Efficient | Yes |
Characteristics and Features
Diverter Location | Valve Trim |
Faucet Type | Shower System |
Handle Style | Lever |
Installation Type | Wall Mounted |
Material | Plastic |
Number Of Handles | 1 |
Pause Control | No |
Showerhead | Multi Function |
Showerhead Material | Plastic |
Showerhead Shape | Round |
Spray Pattern | Jet, Drench, Massage, Mist |
Spray Settings | 4 |
Theme | Modern |
Water Efficient | Yes |
Warranty and Product Information
ASME Code | A112.18.1 |
CA Drought Compliant | Yes |
Certifications | ASME, CSA |
Collection | Spectra Versa |
Country Of Origin | China |
Manufacturer Warranty | Limited Lifetime |
WaterSense Certified | Yes |
Warranty and Product Information
ASME Code | A112.18.1 |
CA Drought Compliant | Yes |
Certifications | ASME, CSA |
Collection | Spectra Versa |
Country Of Origin | China |
Manufacturer Warranty | Limited Lifetime |
WaterSense Certified | Yes |
