American Standard Town Square S 1.28 GPF Two Piece Elongated Chair Height Toilet
Model: 2917823.020|Item: bci3818498
Details

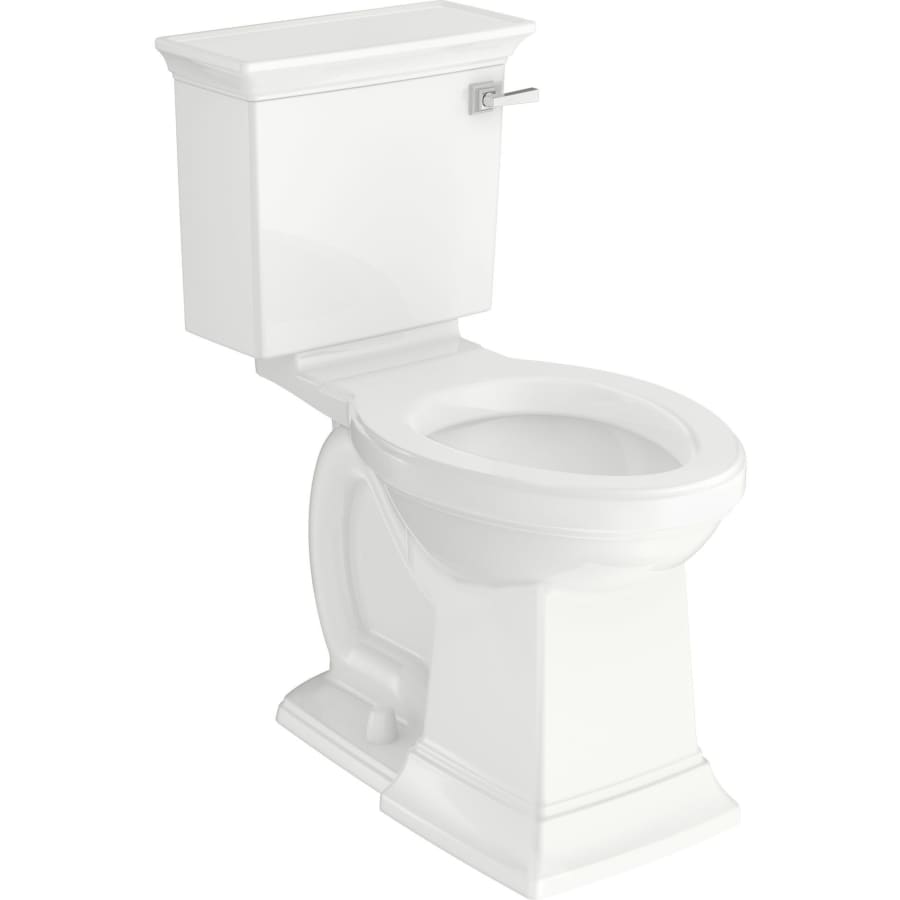

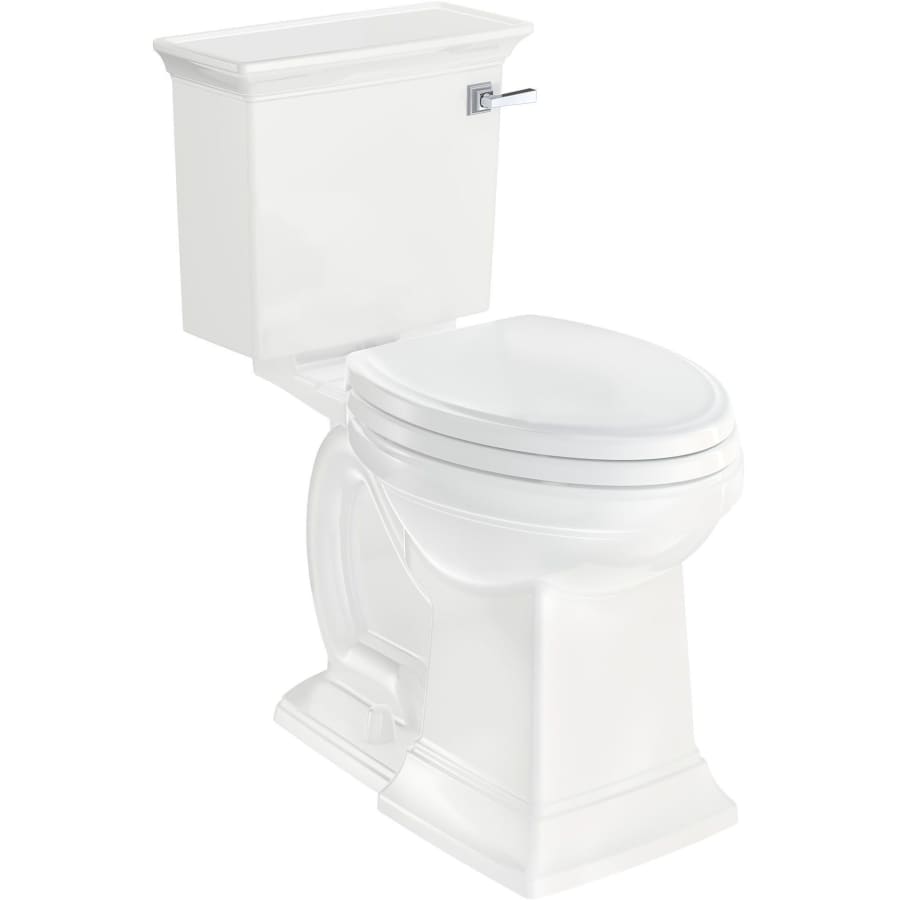

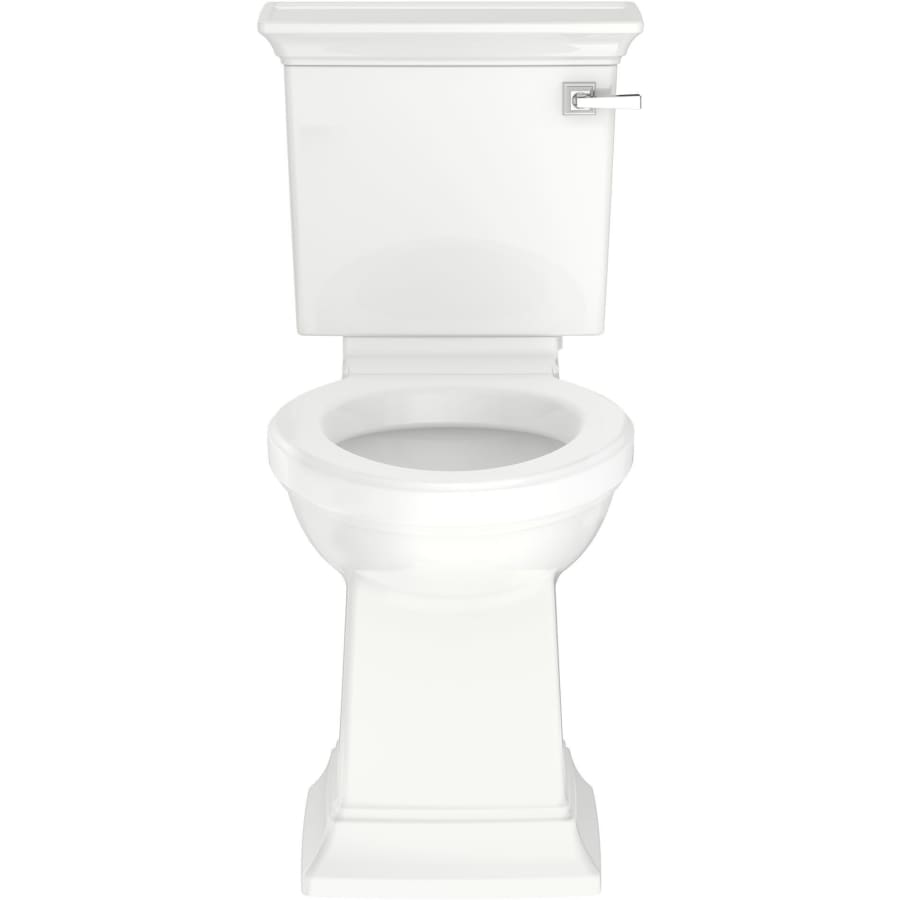

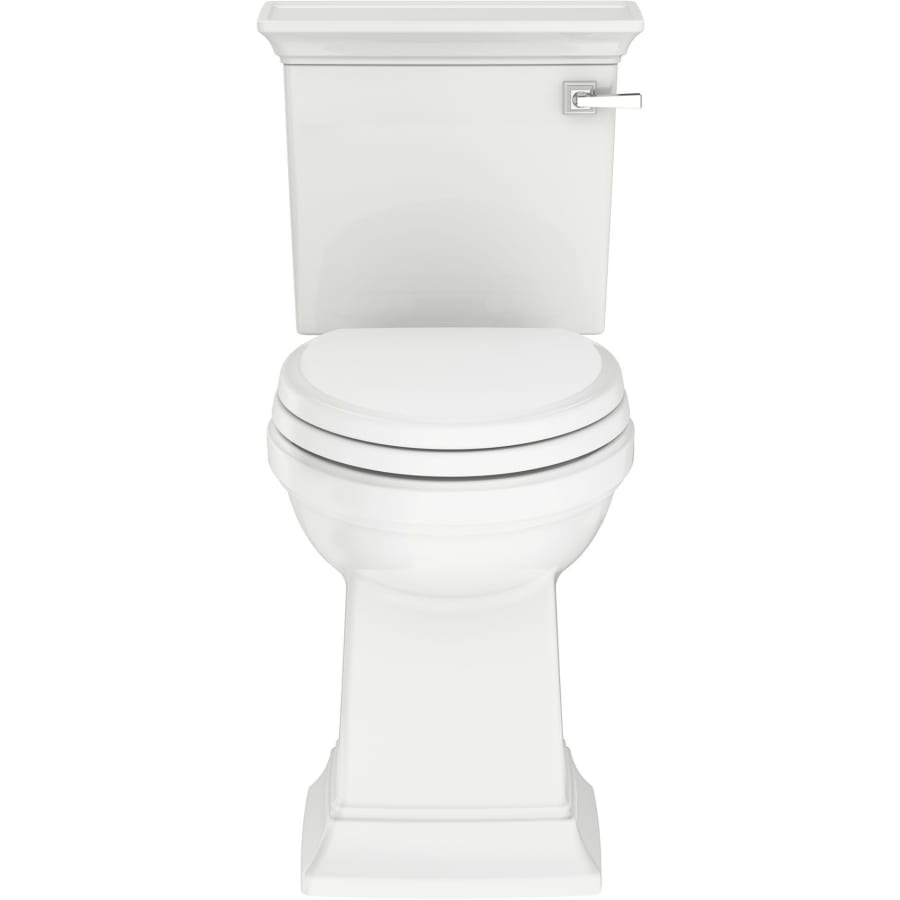

The Town Square S Right Height Elongated Toilet (Right Hand Trip Lever) by American Standard introduces a sense of classic architecture. This stately design features elegant details inspired by crown molding that coordinate perfectly with the rest of the Town Square S collection. A flow rate of 1.28 gallons per flush (gpf) helps to save water with this luxury performance toilet. The Right Height® design provides a taller bowl, for a more comfortable experience. An EverClean® surface, which includes antimicrobial properties, inhibits the growth of stain and odor-causing bacteria, mold, and mildew on the surface, while a PowerWash® rim scrubs the bowl with each flush.
American Standard 2917.823 Features:
- Classic architecturally inspired design provides a timeless look that coordinates with any bathroom décor
- Combination right height elongated bowl and left hand trip lever tank
- Seat sold separately
- High efficiency - full flush at 1.28 gallons per flush helps to save water
- 12" rough, 16-1/2" rim height bowl with fully glazed 2-1/8" trapway
American Standard 2917.823 Specifications:
- Overall Height: 31" (bottom of the base to the highest point on the toilet)
- Overall Depth: 29-3/4" (furthest point back to front of toilet)
- Overall Width: 16-5/8" (furthest point left to furthest point on the right)
- Bowl Height: 16-1/2" (floor to the top of the bowl)
- Flow Rate: 1.28 gallons-per-flush
- Trapway (Discharge Passageway): 2-1/8"
- Rough-In: 12"
- 2917.228: Elongated Toilet with Left Hand Trip Lever
- 2917.823 (This Model): Elongated Toilet with Right Hand Trip Lever
Dimensions and Measurements
Bowl Height | 16.5 in. |
Depth | 29.75 in. |
Flush Valve Size | 3 in. |
Gallons Per Flush | 1.28 |
Height | 31 in. |
Product Weight | 98 lbs. |
Rough In | 12 in. |
Trapway | 2.125 in. |
Width | 16.625 in. |
Dimensions and Measurements
Bowl Height | 16.5 in. |
Depth | 29.75 in. |
Flush Valve Size | 3 in. |
Gallons Per Flush | 1.28 |
Height | 31 in. |
Product Weight | 98 lbs. |
Rough In | 12 in. |
Trapway | 2.125 in. |
Width | 16.625 in. |
Included Components
Seat Included | No |
Included Components
Seat Included | No |
Characteristics and Features
Bowl Shape | Elongated |
Configuration | Two Piece |
Design Features | Glazed Trapway, Chair Height |
Electronic | No |
Flush Type | Siphon Jet |
Installation Type | Floor Mounted |
Material | Vitreous China |
Theme | Traditional |
Trip Lever Placement | Right |
Water Efficient | Yes |
Characteristics and Features
Bowl Shape | Elongated |
Configuration | Two Piece |
Design Features | Glazed Trapway, Chair Height |
Electronic | No |
Flush Type | Siphon Jet |
Installation Type | Floor Mounted |
Material | Vitreous China |
Theme | Traditional |
Trip Lever Placement | Right |
Water Efficient | Yes |
Warranty and Product Information
ADA | Yes |
ASME Code | A112.19.2 |
CA Drought Compliant | Yes |
Certifications | ASME, CSA |
Collection | Town Square S |
Country Of Origin | China |
CSA Code | B45.1 |
Manufacturer Warranty | 10 Year Limited |
TX Drought Compliant | Yes |
WaterSense Certified | Yes |
Warranty and Product Information
ADA | Yes |
ASME Code | A112.19.2 |
CA Drought Compliant | Yes |
Certifications | ASME, CSA |
Collection | Town Square S |
Country Of Origin | China |
CSA Code | B45.1 |
Manufacturer Warranty | 10 Year Limited |
TX Drought Compliant | Yes |
WaterSense Certified | Yes |
