Aladdin Light Lift Residential Grade 200LB Remote Mount Motorized Light Fixture Lift System
Model: ALL200RM|Item: bci2960184
Details
Features:
- Motor mounts in accessible location up to 25 feet away from fixture location
- 1650 watt light wattage capacity
- 25 foot Romex wire
- 200lbs maximum capacity
- Keyswitch controller

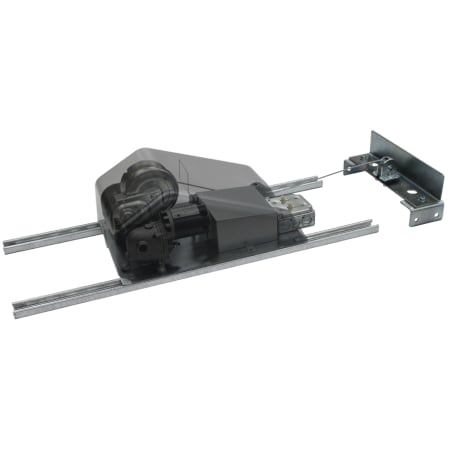

- Plastic dust cover
- 65 foot winch cable and 50 foot controller wire

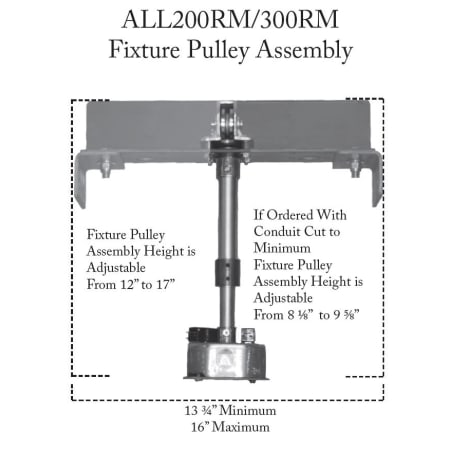

- Chandelier pulley assembly system included

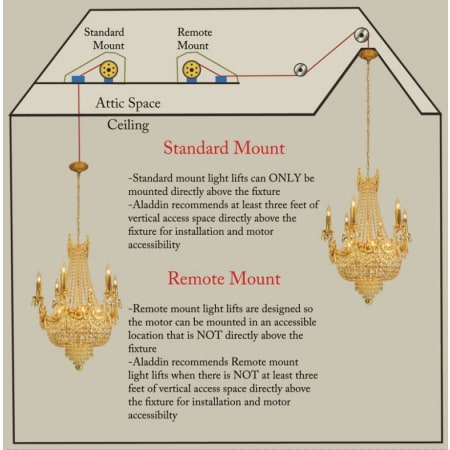

- Remote mount light lift: used in limited access installations
- Zinc plated 4/1 gear ratio winch
Dimensions:
- Height: 9"
- Width: 14"
- Depth: 19"
- Cable Length: 780"
- Wire Length: 600"
Electrical Specifications:
- Voltage: 110
- Amperage: 1.3
- UL Listed: Yes
- Motor HP: 0.06
- Mount Type: Remote
- Motor Frequency: 50, 60
- Weight Capacity: 200 lbs
- Electrical: Circuit boards rated min V-0, conformal coated; all components and board are UL listed and regulated
- Wiring: lead free, RoHS compliant; all wiring and harnesses are UL listed and regulated
- Must be installed by licensed electricians
Dimensions and Measurements
Cable Diameter | 0.125 in. |
Cable Length | 780 in. |
Depth | 19 in. |
Height | 9 in. |
Max Capacity (Pounds) | 200 lbs. |
Width | 14 in. |
Wire Length | 600 in. |
Dimensions and Measurements
Cable Diameter | 0.125 in. |
Cable Length | 780 in. |
Depth | 19 in. |
Height | 9 in. |
Max Capacity (Pounds) | 200 lbs. |
Width | 14 in. |
Wire Length | 600 in. |
Characteristics and Features
Control Type | Key |
Mount Type | Remote |
Characteristics and Features
Control Type | Key |
Mount Type | Remote |
Electrical and Operational Information
Amperage | 1.3 |
Horsepower | 0.06 |
Motor Frequency | 50, 60 |
Power Source | Hardwired |
Voltage | 110 |
Voltage Type | Line Voltage (110-120V) |
Electrical and Operational Information
Amperage | 1.3 |
Horsepower | 0.06 |
Motor Frequency | 50, 60 |
Power Source | Hardwired |
Voltage | 110 |
Voltage Type | Line Voltage (110-120V) |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | UL, CSA |
CSA Code | C22.2 |
Manufacturer Warranty | 1 Year |
UL Listing Number | UL 1340 |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | UL, CSA |
CSA Code | C22.2 |
Manufacturer Warranty | 1 Year |
UL Listing Number | UL 1340 |
